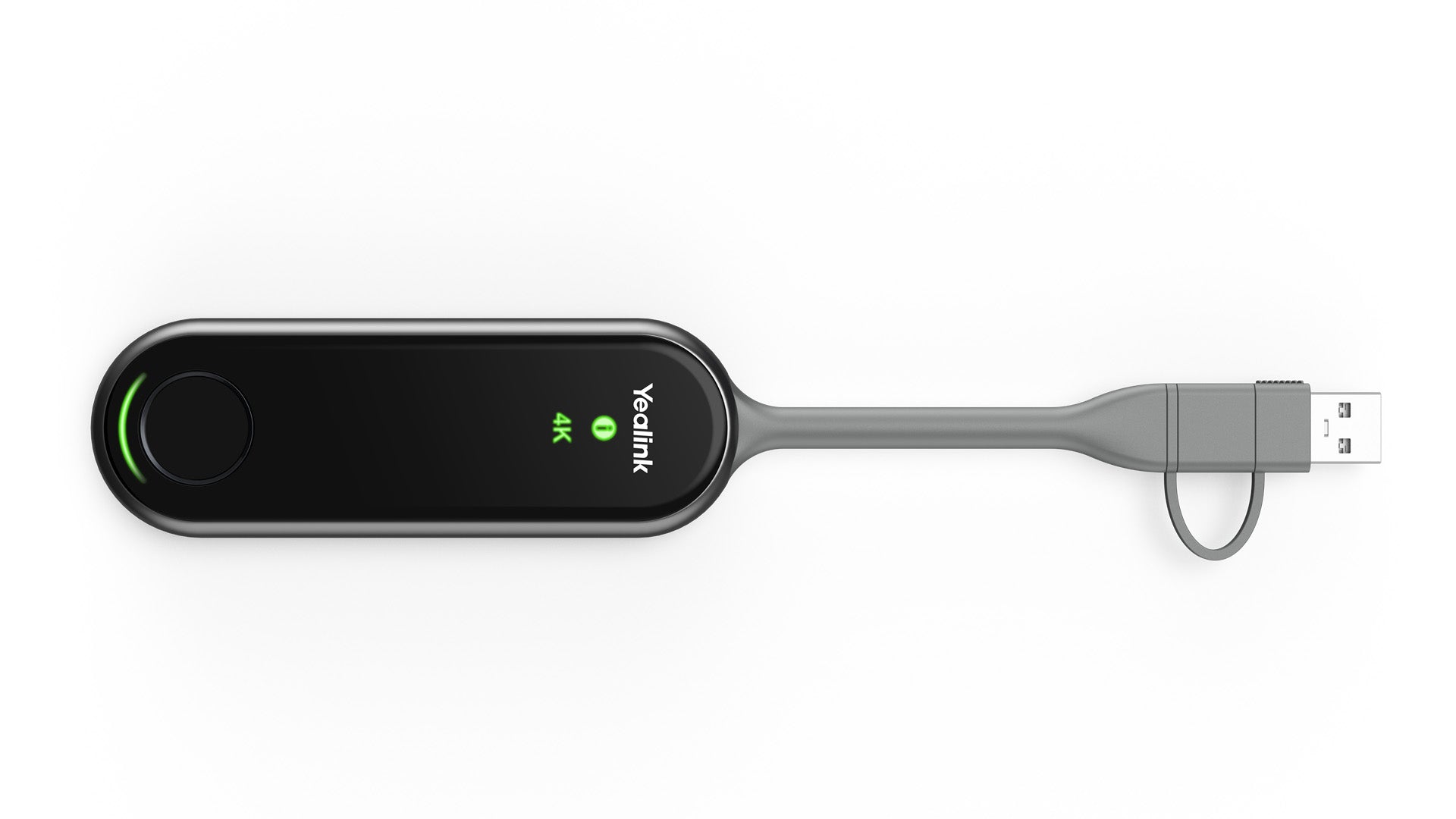

Yealink P20 4K Ultra HD Presentation Assistant (PA20)
Yealink P20 4K Ultra HD Presentation Assistant (PA20)
The Yealink PA20 is a new 4K Ultra HD presentation assistant. Empowered with up to 4K/30FPS UHD hardware encode streaming output, PA20 saves a lot of effort by eliminating any software or driver installation. A USB Type-A/ full-featured USB Type-C port is suitable for different computers and phones. Since PA20 has the embedded meeting assistant software and Wi-Fi 6 chip, simply plug PA20 into the devices, and you can quickly be ready to present. PA20 provides you with a more convenient and richer content sharing experience.
Key Features and Benefits
- Self-built Wi-Fi Network
- 4K/30fps Full HD Content Sharing
- Adaptive Software/Hardware Encoding
- Dual-band 2.4GHz/5GHz wireless networks
- Plug and Play
- AES & WPA Data Encryption
- Up to four content streams can be presented simultaneously
4K HD Presentation, Low Latency
Thanks to the high-performance 2x2 MIMO, Wi-Fi 6 module, PA20 delivers immediate response and a smooth and trouble-free presenting experience with low latency. PA20 supports a 2.4GHz/5GHz dual-band wireless network, perfect anti-interference capability, and up to 4K/30fps ultra HD presentation.
No Extra Driver, Plug-and-play
PA20 is suitable for devices that support free collaboration and have a full-featured USB Type-C port. PA20 adopts the built-in hardware encoding chip solution. No need to install any software or driver, and no CPU occupied.
Yealink P20 4K Ultra HD Presentation Assistant - Technical Specifications
Basic
- Decoder: Up to 4k/30fps
- Input Power: 5V/600 mA
- Power Consumption: 2.2 W (Typical)
- Interface:
- Full-featured USB Type-C ×1
- USB-C to USB-A Adapter x1
- Button: START/STOP Button x 1
- LED
- 4K/UHD Indicator × 1
- System Error Indicator × 1
- System Status Indicator × 1
Wi-Fi
- Standard: 802.11 b/g/a/n/ac/ax
- Frequency:
- 2400-2483.5MHz
- 5150-5250MHz
- 5250-5350MHz
- 5470-5725MHz
- 5725-5850MHz
- Security: WPA-PSK/WPA2-PSK
Device Compatibility
- Operation System:
- - Windows 7/8/10/11
- - Mac OS 10.10 or later
Advanced Features
- IP-BYOD*
- Desktop Sharing:
- - Duplicated Desktop
- - Extended Desktop
- Collaboration:
- - Annotation
- - Intuitive Remote Control
- - Multiple Screens Share (MeetingBoard/RoomCast)
Operating Environmental
- Temperature range: -10 - 40℃
- Humidity range: 0 - 90%, non-condensing
Dimensions
- Weight (g/lb): 75 g (0.165 lb)
- Size (mm/in): 220 mm × 38 mm × 16 mm (8.66″ x 1.50″ ×0.63″ )
LED Status
| LED | LED Indicator | Description |
|---|---|---|
| 4K/UHD Indicator | Solid green | The hard-coded content sharing resolution reaches 4K. |
|
System Error Indicator |
Solid red | Fail to connect to the endpoint. |
| System Status Indicator | Flash green slowly | The connection has been completed, and is waiting for content sharing. |
| System Status Indicator | Solid green | Sharing content. |
| System Status Indicator | Solid orange | Updating/Pairing. |
Yealink P20 4K Ultra HD Presentation Assistant (PA20)
The Yealink PA20 is a new 4K Ultra HD presentation assistant. Empowered with up to 4K/30FPS UHD hardware encode streaming output, PA20 saves a lot of effort by eliminating any software or driver installation. A USB Type-A/ full-featured USB Type-C port is suitable for different computers and phones. Since PA20 has the embedded meeting assistant software and Wi-Fi 6 chip, simply plug PA20 into the devices, and you can quickly be ready to present. PA20 provides you with a more convenient and richer content sharing experience.
Key Features and Benefits
- Self-built Wi-Fi Network
- 4K/30fps Full HD Content Sharing
- Adaptive Software/Hardware Encoding
- Dual-band 2.4GHz/5GHz wireless networks
- Plug and Play
- AES & WPA Data Encryption
- Up to four content streams can be presented simultaneously
4K HD Presentation, Low Latency
Thanks to the high-performance 2x2 MIMO, Wi-Fi 6 module, PA20 delivers immediate response and a smooth and trouble-free presenting experience with low latency. PA20 supports a 2.4GHz/5GHz dual-band wireless network, perfect anti-interference capability, and up to 4K/30fps ultra HD presentation.
No Extra Driver, Plug-and-play
PA20 is suitable for devices that support free collaboration and have a full-featured USB Type-C port. PA20 adopts the built-in hardware encoding chip solution. No need to install any software or driver, and no CPU occupied.
Yealink P20 4K Ultra HD Presentation Assistant - Technical Specifications
Basic
- Decoder: Up to 4k/30fps
- Input Power: 5V/600 mA
- Power Consumption: 2.2 W (Typical)
- Interface:
- Full-featured USB Type-C ×1
- USB-C to USB-A Adapter x1
- Button: START/STOP Button x 1
- LED
- 4K/UHD Indicator × 1
- System Error Indicator × 1
- System Status Indicator × 1
Wi-Fi
- Standard: 802.11 b/g/a/n/ac/ax
- Frequency:
- 2400-2483.5MHz
- 5150-5250MHz
- 5250-5350MHz
- 5470-5725MHz
- 5725-5850MHz
- Security: WPA-PSK/WPA2-PSK
Device Compatibility
- Operation System:
- - Windows 7/8/10/11
- - Mac OS 10.10 or later
Advanced Features
- IP-BYOD*
- Desktop Sharing:
- - Duplicated Desktop
- - Extended Desktop
- Collaboration:
- - Annotation
- - Intuitive Remote Control
- - Multiple Screens Share (MeetingBoard/RoomCast)
Operating Environmental
- Temperature range: -10 - 40℃
- Humidity range: 0 - 90%, non-condensing
Dimensions
- Weight (g/lb): 75 g (0.165 lb)
- Size (mm/in): 220 mm × 38 mm × 16 mm (8.66″ x 1.50″ ×0.63″ )
LED Status
| LED | LED Indicator | Description |
|---|---|---|
| 4K/UHD Indicator | Solid green | The hard-coded content sharing resolution reaches 4K. |
|
System Error Indicator |
Solid red | Fail to connect to the endpoint. |
| System Status Indicator | Flash green slowly | The connection has been completed, and is waiting for content sharing. |
| System Status Indicator | Solid green | Sharing content. |
| System Status Indicator | Solid orange | Updating/Pairing. |
