Experience Seamless Communication with the Yealink W73H
Yealink W73H and W73P Datasheet (PDF)

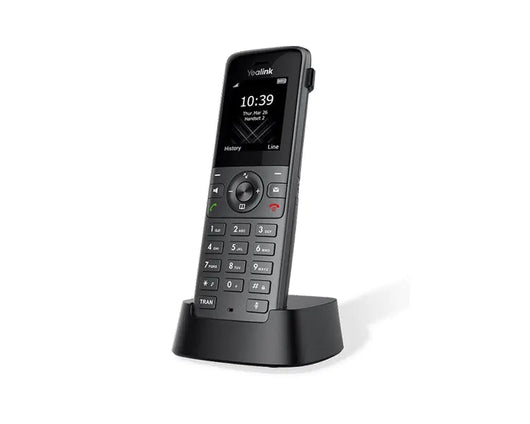

Yealink W73H DECT Handset
The Yealink W73H is the new-generation of stylish modern wireless handset designed for business use with a new ID design, which is more sleek, convenient to carry, and has better battery life and communication quality.
Yealink W73H Key Features
- 1.8" 128x160 TFT colour screen
- New modern commercial design, more compact and easy to carry
- Up to 35 hours talk time (in ideal conditions)
- Up to 400 hours standby time
- HD voice and noise cancellation
- Headset connection via 3.5 mm jack
- Sturdy and reliable belt clip to move discretionarily
The W73H is perfectly compatible with Yealink W70B. The W73P system can support 10 handsets, 10 SIP accounts, and 20 simultaneous calls (2 calls per handset). The W73H will be perfectly compatible with the W90 multi-cell system, providing you with more options for your office expansion.
Yealink W73H Technical Specification
Display
- 1.8" 128x160 TFT colour screen
- Intuitive user interface with icons and soft keys
- Caller ID with name and number
- Notification Light: voice mail, missed call
- Date & time (manual/auto synchronization)
- Screen saver
- Multilingual user interface
- Keypad backlight
Phone Features
- Up to 2 simultaneous calls per handset
- Handset select for receiving call
- Handset and Number select for making call
- Auto intercom, auto answer
- 3-way conference
- Call forward: Always/Busy/No Answer
- DND
- Call waiting, mute, hold
- Call transfer
- Swap between calls
- Redial
- Speed dial
- Voice mail
- Silence
- Dial plan: Replace Rule/Area Code/Block Out
- Keypad lock，emergency call
- 100 phone book memory (store in the base)
- Remote phonebook, LDAP, XML phonebook
- Phonebook search, block list
- Call history: All/Placed/Missed/Received (up to 100 entries)
- Direct IP call without SIP proxy
- Reset to factory, reboot
- Anonymous call, Anonymous call rejection
- OTA (Over-The-Air) upgrade
Voice Features
- Full-duplex speakerphone
- HD audio
- Hearing Aid Compatibility (HAC) compliant
- Frequency response—100 Hz–7 kHz
- FNR (Flexible Noise Reduction)/NoiseCancellation
- Receiver volume control: 5 steps
- Ringer volume control: 5 steps+off
- 9 ringer melodies
- Multiple advisory tones
- Acoustic warning for low battery status
- DTMF
Physical Features
- Handset Size:144.5 mm x 48 mm x 21 mm
- Handset Weight: 112g
- Colour: Space Grey
- Battery: 1010 mAh, Lithium-ion, 3.7 V, 3.73 WH:
- Up to 35 hours of talk time (in ideal conditions)
- Up to 400 hours of standby time - Headset jack (3.5 mm)
- Charger: DC 5V/0.6A Output
- Power Adapter:
- Input: 100-240 V ~ 50/60 Hz, 0.2 A
- Output: 5 V, 0.6 A - Backlit keypad with 25 keys:
- Standard ITU telephone keypad, 12 keys, 4x3, with star and pound key
- 5 navigation keys (left, right, up, down, OK)
- 2 softkeys
- 6 function keys (Speaker, message, Off-hook, Cancel, TRAN, Mute) - 6 shortcut keys
- Operating humidity: 10 ~ 95%
- Operating temperature: -10 ~ +50°C (+14~122°F)
- Storage temperature: -30 ~ 70°C (-22 ~ 158°F)
DECT
- Frequency bands: 1880 – 1900 MHz (Europe), 1920 – 1930 MHz (US)
- DECT Range:
- Up to 50 meters indoor (in ideal conditions)
- Up to 300 meters outdoor (in ideal conditions) - DECT Standards: CAT-iq2.0
Package Features
- Package content:
- W73H Handset
- Charger Cradle
- Rechargeable Battery
- Belt Clip
- Power Adapter - Qty/CNT: 20 PCS
- Giftbox size: 473mm x 443mm x 198mm
- Carton meas: 181mm x 104mm x 90mm
- N.W: 7.316Kg
- G.W: 8.3148Kg
Enhanced Mobility and Flexibility
The Yealink W73H DECT Handset is a wireless IP phone that brings unmatched mobility to your business communication. Designed for use in various environments, the W73H allows users to move freely while staying connected. This cordless handset not only provides convenience but also ensures that important calls are answered anywhere within the office space. The long battery life means you can work longer without constantly worrying about recharging, making it an ideal choice for busy professionals.
High-Quality Audio Performance
One of the standout features of the Yealink W73H is its superior audio quality. The phone is equipped with HD voice technology, which significantly enhances call clarity. Users will notice a distinct improvement in sound quality, whether they are on a confidential business call or participating in a conference. This high-quality audio performance is crucial for effective communication, as it reduces misunderstandings and increases productivity during conversations.
Easy to Use and Set Up
The Yealink W73H is designed with user-friendliness in mind. Its intuitive interface and well-placed buttons make it easy to navigate through various features and settings. Moreover, the setup process is straightforward, allowing businesses to integrate this handset seamlessly into their existing communication systems. With simple pairing options and a user manual that is easy to follow, even those less familiar with technology can use it without difficulty.
