Yealink Zoom Meeting Room Panel
Yealink Zoom Meeting Room Panel Datasheet (PDF)
Yealink Zoom Meeting Room Panel

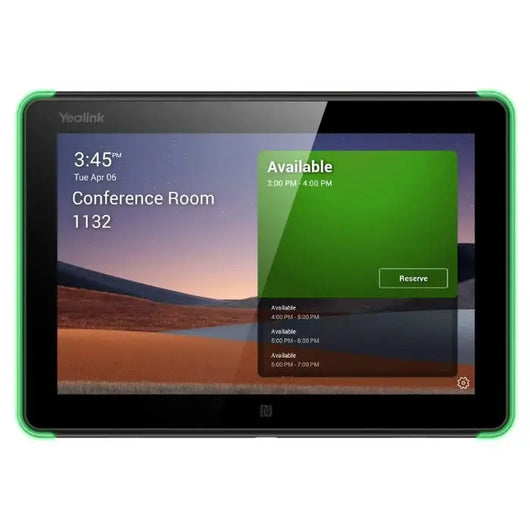

The Yealink Zoom Meeting Room Panel is an innovative 8-inch meeting room schedule panel running on Android 9.0. It features full RGB programmable LED background illumination for clear room status communication and offers 10-point touch capability for easy booking and check-in/out. With flexible power options, anti-fingerprint screen, and ambient light sensors, it's a versatile solution for modern workspace management. The device supports RFID and NFC for enhanced security and attendee tracking. It can be remotely managed through the Yealink Management Cloud Server and offers robust connectivity with 802.11ac Wi-Fi and Bluetooth 5.0.
Yealink Zoom Meeting Room Panel Key Features:
- Anti Fingerprint Screen
- 8-Inch 10-Point Interactive Panel
- High Visibility LED Bars out Room Status
- Ambient Light & Proximity Sensor Embedded
Whether mounted in portrait or landscape orientation, the Yealink RoomPanel connects directly to room sensors, eliminating the need for extra gateways and supporting actions based on occupancy data, such as automatic room release and check-in. Its versatile wireless network deployment and anti-jamming dual-band Wi-Fi ensure a dependable user experience. The Yealink RoomPanel is a smart choice for efficient and effective room scheduling and management, offering a comprehensive solution for businesses seeking modern and flexible workspace management tools.
Yealink Zoom Meeting Room Panel Technical Specifications
Basic
- Operating System: Android 9
Display
- Size: 8" LCD Panel (16:10)
- Resolution: 1280x800
- Contrast: 1000:1
- Viewing Angle(H/V): ±80°/±80°
- 10 points capacitive multi-touch
- Anti-fingerprint Coating
- Proximity Sensor: Yes
- Ambient Light Sensor: Yes
Connectivity
- Ethernet: 1 x Fast ethernet port (10/100Mbps)
- Wi-Fi: 2x2 MIMO, 802.11a/b/g/n/ac
- Bluetooth: 5.0
- RFID/NFC: 13.56MHz
- USB Port: 1 x USB-C port
- Button: 1 x Reset pin hole
Audio
- Microphone: 2 x Array Microphones
- Speaker: 2 x 1 Watt Speakers
Power Supply
- Power over Ethernet (IEEE 802.3af)
- 12V Power Adapter
Mounting Options
- Surface mount for 2-gang US electrical box
- 20° tilt mount kit for wall or glass
- Flush mount kit for wall or glass
Dimensions
- Display size (mm): 209 x 146 (8.23” x 4.06”)
- Weight: 0.53kg (1.16
