Yeastar TG1600 VoIP GSM Gateway 1 GM8

Available:In Stock
£3,725.04

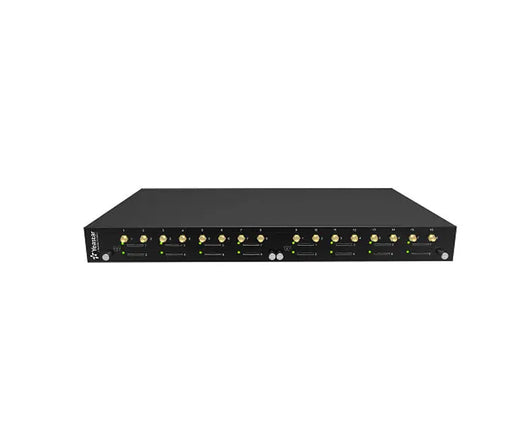

Yeastar TG1600 VoIP GSM Gateway 1 GM8

The Yeastar TG1600 connects GSM or WCDMA or 4G LTE to VoIP networks to provide two-way communication: GSM/3G/4G to VoIP and VoIP to GSM/3G/4G. This allows you to connect most IP-based telephone systems including Yeastar IP Phone Systems, and softswitches to a GSM or 3G WCDMA or 4G LTE; which can provide a sophisticated fallback solution when landlines go down, or be used to increase call traffic capacity by providing additional dial-tone.

Yeastar TG1600 Key Features

  • GSM Voice Calls
  • VoLTE for HD Calls
  • Maximum Cost Reduction
  • Top Quality and Reliability
  • Mobile Connectivity for SMB

Easy to use

Simple and intuitive Web-based configuration saves you loads of time

Mobile Trunkings

Add GSM/WCDMA trunkings for business making high number of calls to mobile networks

Bulk SMS Service

Great tool for enterprises to manage customer relations and introduce special offers with a low cost

Interoperability

Interoperable with a broad list of softswitch, PBX, and IP-PBX like Elastix and Lync Server

Yeastar TG1600 Technical Specifications

Interface

  • TG1600: 16 GSM 3G or 4G Channels
  • TG800, TG1600: 2 10/100 Mbps Ethernet Interfaces
  • Antenna Splitter (4 in 1 antenna): TG400, TG800, TG1600

Voice Processing

  • Protocol: SIP, IAX2
  • Transport: UDP, TCP, TLS, SRTP
  • Voice Codec: G.711 (alaw/ulaw), G.722, G.726, G.729A, GSM, ADPCM, Speex
  • Echo Cancellation: ITU-T G.168 LEC
  • DTMF Mode: RFC2833, SIP INFO, In-band
  • SIP Server for IP Phones Included
  • SIP Response Code Switch
  • Call Progress Tone Generation
  • 1 Stage/2 Stage Dial

System Features

  • Mobile Ports Groups
  • VoIP Trunk Group
  • Incoming /Outgoing Routing rules
  • Black List
  • Hotline
  • AutoCLIP
  • Call Duration Limitation
  • Call Transfer
  • Call Back
  • Call Detail Record (CDR
  • Call Status Display
  • NTP
  • IP Blacklist
  • Network Attack Alert
  • Packet Capture
  • System Logs

System Features

  • Mobile Ports Groups
  • VoIP Trunk Group
  • Incoming /Outgoing Routing rules
  • Black List
  • Hotline
  • AutoCLIP
  • Call Duration Limitation
  • Call Transfer
  • Call Back
  • Call Detail Record (CDR
  • Call Status Display
  • NTP
  • IP Blacklist
  • Network Attack Alert
  • Packet Capture
  • System Logs

Mobile Features

  • GSM Frequency: 850/900/1800/1900MHz
  • WCDMA Frequency: 850/1900MHz, 850/2100MHz, 900/2100MHz
  • 4G LTE Band: depends on the module type
  • VoLTE if the Carrier Supports
  • SMS Sending and Receiving
  • Send Bulk SMS
  • SMS Center
  • Gain Adjustment
  • USSD
  • PIN Modify
  • Carrier Selection: Auto/Manual
  • Talk Time Alarm
  • Caller ID/CLIR
  • Open API for SMS and USSD

Network & Management

  • Network Protocol: FTP, TFTP, HTTP, SSH
  • NAT Traversal: Static NAT, STUN
  • Static Route
  • OpenVPN
  • Firewall
  • VLAN
  • QoS/ToS
  • DDNS
  • Configure Backup/Restore
  • Firmware Upgrade by HTTP/TFTP
  • Web based Configuration

Physical

  • TG100 110x70x24 DC 12V, 1A
