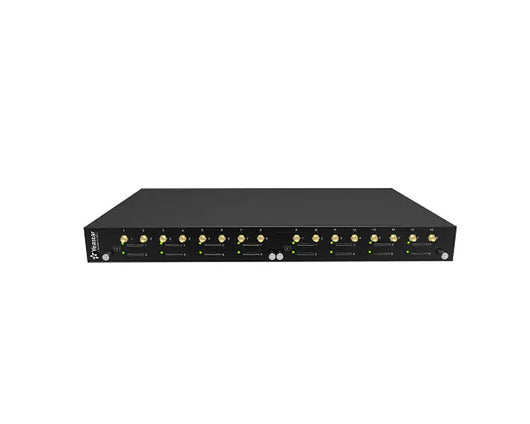

Yeastar TG1600W VoIP Gateway (16*WCDMA Ports)

The Yeastar TG1600W connects GSM or WCDMA or 4G LTE to VoIP networks to provide two-way communication: GSM/3G/4G to VoIP and VoIP to GSM/3G/4G. This allows you to connect most IP-based telephone systems including Yeastar IP Phone Systems, and softswitches to a GSM or 3G WCDMA or 4G LTE; which can provide a sophisticated fallback solution when landlines go down, or be used to increase call traffic capacity by providing additional dial-tone.

Yeastar TG1600W Key Features

GSM Voice Calls
VoLTE for HD Calls
Maximum Cost Reduction
Top Quality and Reliability
Mobile Connectivity for SMB

Easy to use

Simple and intuitive Web-based configuration saves you loads of time

Mobile Trunkings

Add GSM/WCDMA trunkings for business making high number of calls to mobile networks

Bulk SMS Service

Great tool for enterprises to manage customer relations and introduce special offers with a low cost

Interoperability

Interoperable with a broad list of softswitch, PBX, and IP-PBX like Elastix and Lync Server

Yeastar TG1600 Technical Specifications

Interface

TG1600: 16 GSM 3G or 4G Channels
TG800, TG1600: 2 10/100 Mbps Ethernet Interfaces
Antenna Splitter (4 in 1 antenna): TG400, TG800, TG1600

Voice Processing

Protocol: SIP, IAX2
Transport: UDP, TCP, TLS, SRTP
Voice Codec: G.711 (alaw/ulaw), G.722, G.726, G.729A, GSM, ADPCM, Speex
Echo Cancellation: ITU-T G.168 LEC
DTMF Mode: RFC2833, SIP INFO, In-band
SIP Server for IP Phones Included
SIP Response Code Switch
Call Progress Tone Generation
1 Stage/2 Stage Dial

System Features

Mobile Ports Groups
VoIP Trunk Group
Incoming /Outgoing Routing rules
Black List
Hotline
AutoCLIP
Call Duration Limitation
Call Transfer
Call Back
Call Detail Record (CDR
Call Status Display
NTP
IP Blacklist
Network Attack Alert
Packet Capture
System Logs

System Features

Mobile Ports Groups
VoIP Trunk Group
Incoming /Outgoing Routing rules
Black List
Hotline
AutoCLIP
Call Duration Limitation
Call Transfer
Call Back
Call Detail Record (CDR
Call Status Display
NTP
IP Blacklist
Network Attack Alert
Packet Capture
System Logs

Mobile Features

GSM Frequency: 850/900/1800/1900MHz
WCDMA Frequency: 850/1900MHz, 850/2100MHz, 900/2100MHz
4G LTE Band: depends on the module type
VoLTE if the Carrier Supports
SMS Sending and Receiving
Send Bulk SMS
SMS Center
Gain Adjustment
USSD
PIN Modify
Carrier Selection: Auto/Manual
Talk Time Alarm
Caller ID/CLIR
Open API for SMS and USSD

Network & Management

Network Protocol: FTP, TFTP, HTTP, SSH
NAT Traversal: Static NAT, STUN
Static Route
OpenVPN
Firewall
VLAN
QoS/ToS
DDNS
Configure Backup/Restore
Firmware Upgrade by HTTP/TFTP
Web based Configuration

Physical

TG100 110x70x24 DC 12V, 1A
