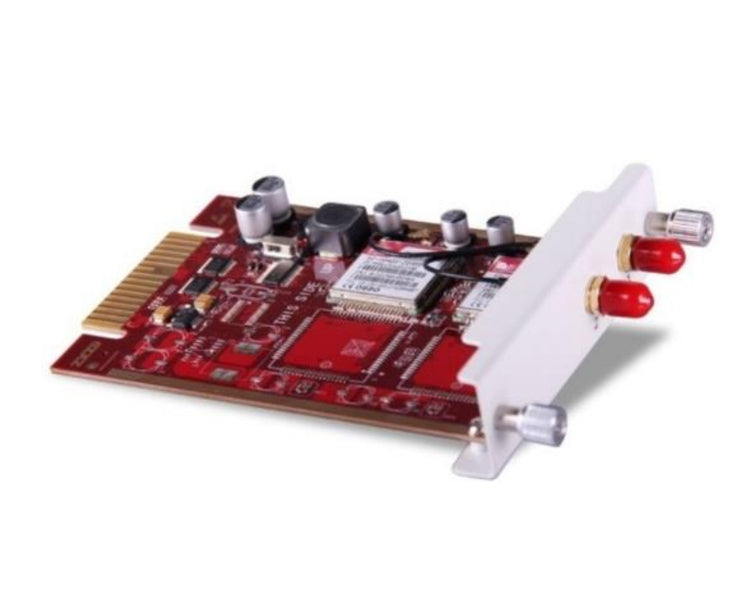

ZYCOO CooVox 2GSM Module

£289.68

ZYCOO CooVox 2GSM Module

The Zycoo CooVox 2 GSM module works with the CooVox-U50/U80/U100 IP Phone Systems.

Each port has one LED(Light-Emitting Diodes), which is assembled on the mainboard.

The LED indicates port status:

  •  Solid = Module loading successful
  • Blink = Channel Ringing

If the LED is off, the GSM module is loading failure

ZYCOO CooVox 2GSM Module - Technical Specification

Features

  • Number of Quad Band GSM channels per module - 2GSM
  • External antennas - 2
  • SIM Cards - 2
  • External power supply required - No
  • Interoperable modules -
    • 4FXO
    • 4FXS
    • 2FXOS
    • 4BRI
    • 1E1/T1(PRI)
  • Supported protocols
    • Voice (2G)
    • SMS
  • Accessibility - Through Asterisk 1.8x
  • Environmental Operation Information
    • Temperature:
      Humidity: 5% ~ 95% Non-Condensing
  • Physical Dimensions -88.5 x 132 mm
  • Certifications - CE / FCC / RoHS
Add to WishlistCompare

apple paygoogle payjcbmasterpaypalvisa
Ask a Question
Vendor: voipsupplies
SKU: CooVOX2GSM
Availability: In Stock Pre order Out of stock
Description

ZYCOO CooVox 2GSM Module

The Zycoo CooVox 2 GSM module works with the CooVox-U50/U80/U100 IP Phone Systems.

Each port has one LED(Light-Emitting Diodes), which is assembled on the mainboard.

The LED indicates port status:

  •  Solid = Module loading successful
  • Blink = Channel Ringing

If the LED is off, the GSM module is loading failure

ZYCOO CooVox 2GSM Module - Technical Specification

Features

  • Number of Quad Band GSM channels per module - 2GSM
  • External antennas - 2
  • SIM Cards - 2
  • External power supply required - No
  • Interoperable modules -
    • 4FXO
    • 4FXS
    • 2FXOS
    • 4BRI
    • 1E1/T1(PRI)
  • Supported protocols
    • Voice (2G)
    • SMS
  • Accessibility - Through Asterisk 1.8x
  • Environmental Operation Information
    • Temperature:
      Humidity: 5% ~ 95% Non-Condensing
  • Physical Dimensions -88.5 x 132 mm
  • Certifications - CE / FCC / RoHS
