ZYCOO CooVox 4FXS Module
ZYCOO CooVox 4FXS Module

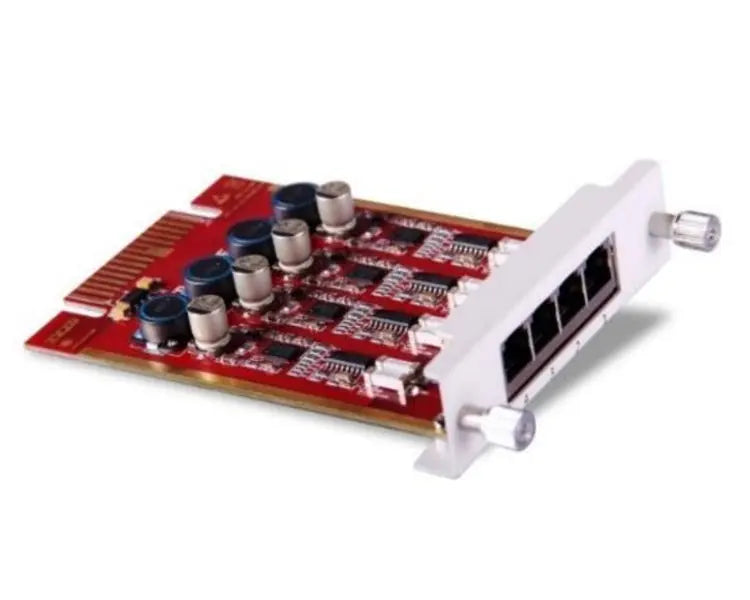

The ZYCOO CooVox 4FXS Module supports CooVox-U50/U100V1, U80,U50/U100V2 IP Phone System with 4 RJ11 ports for line connection. Each port has one LED(Light-Emitting Diode), which is assembled on the main board.
The LED indicates port status:
> Solid = Module loading successful
> Blink = Channel Ringing
If LED is off, the module loading is failed
All four ports on ZYCOO 4FXS module bracket are 6P4C RJ11 ports. The pin assignments are identified below:
ZYCOO CooVox 4FXS Module - Technical Specification
Features
- Environmental Operation Information
- Temperature:0°C ~ 40°C
Humidity: 5% ~ 95% Non-Condensing
- Temperature:0°C ~ 40°C
- Physical Dimensions - 88.5 x 132 mm
- Certifications CE / FCC / RoHS
